DTF halftone generator for converting soft transparency into opaque dots and clear gaps. Remove a background color, set a minimum dot diameter, and export locally without signup or credits.
Try a sample
Adjustments
In DTF printing, halftone processing addresses artwork with both solid colors and partially transparent edges. A soft shadow may look attractive on a screen while leaving a broad region of intermediate alpha in the file. This DTF halftone generator turns that partial coverage into a pattern of fully opaque pixels separated by fully transparent space. It changes the coverage structure, while retaining the RGB values of the source pixels that survive.
The distinction from ordinary halftoning matters. A dark opaque shape does not automatically become a black dot screen in DTF mode. With knockout disabled, pixels whose alpha is 255 remain unchanged. Pixels whose alpha is zero stay clear. Only the intermediate region is screened. This lets an opaque logo stay solid while its fading edge becomes a pattern. The dots are driven by alpha rather than by image luminance.
Color knockout is a separate preparation step. It lowers alpha for pixels close to the selected background color, then the DTF halftone generator screens the newly partial areas. The black-shirt preset starts with black knockout; the white-shirt preset starts with white knockout. Neither preset detects the garment or isolates a subject. Matching colors anywhere in the image can be affected, including details you intended to keep.
Load a PNG or another supported image, paste from the clipboard, or try the transparent-star example. Inspect the original before changing anything. A JPG has no alpha channel, so its opaque image needs knockout before transparency-based screening can change it. The file limit is 60 MB, with a decoded-image limit of 64 megapixels. Keep an untouched original for later adjustments.
Choose the DTF black-shirt or white-shirt preset, then inspect the knockout color and tolerance. Turn knockout off if your source already has the desired transparency. At zero tolerance, only an exact color match is removed. Higher tolerance creates a broader falloff around the selected color. Check lettering, outlines and interior holes as well as the outer edge.
Set the DPI to 150, 300 or 600, then adjust the cell spacing and minimum dot diameter. The default minimum is 0.3 mm, converted to pixels using your selected DPI. The DTF halftone generator displays the physical dimensions implied by the export pixel dimensions. Check those dimensions against the size you plan to use in your print software.
Choose PNG when you need transparency and embedded DPI metadata. The exported PNG contains only alpha 0 and alpha 255. Open it at full resolution and inspect the smallest retained marks. The 1× and 2× options stop at an 8000-pixel long edge. A JPG fills the gaps white, so it does not preserve the transparent DTF mask.
DTF halftone knockout uses the distance between a pixel’s RGB color and the selected color. An exact match becomes transparent. Within the tolerance region, the remaining alpha increases gradually with distance; beyond that region, the original alpha is retained. This continuous falloff is then converted into dot coverage. The tolerance control is not a subject-selection tool, a perceptual color match or an automatic background remover.
Minimum dot diameter is tied to physical units. At 300 DPI, 0.3 mm corresponds to roughly 3.54 pixels; at 600 DPI it is roughly 7.09 pixels. A mark below that threshold is omitted. Increasing DPI while leaving the pixel grid unchanged therefore removes more small marks. That is expected: the same number of pixels now represents a smaller physical feature. DPI metadata alone does not add detail to the image.
Six shapes remain available in DTF mode: circle, square, diamond, line, ellipse and cross. The minimum-size rule uses the narrow dimension for an ellipse, line or cross, so a long mark does not pass solely because it is long. The cell average determines the nominal mark size, and the source alpha mask prevents the dot from painting into fully transparent source pixels. Retained opaque pixels keep their original RGB color.
PNG is the clearest transfer format for this workflow. Its pHYs chunk records the selected pixels-per-meter value corresponding to your DPI. Some receiving software may ignore this metadata, so verify placement size after importing. SVG is also available, but intact opaque artwork can contain many colors: the DTF halftone generator stores same-color horizontal pixel runs as vector paths. Above 250,000 runs, it asks you to confirm before building the file.

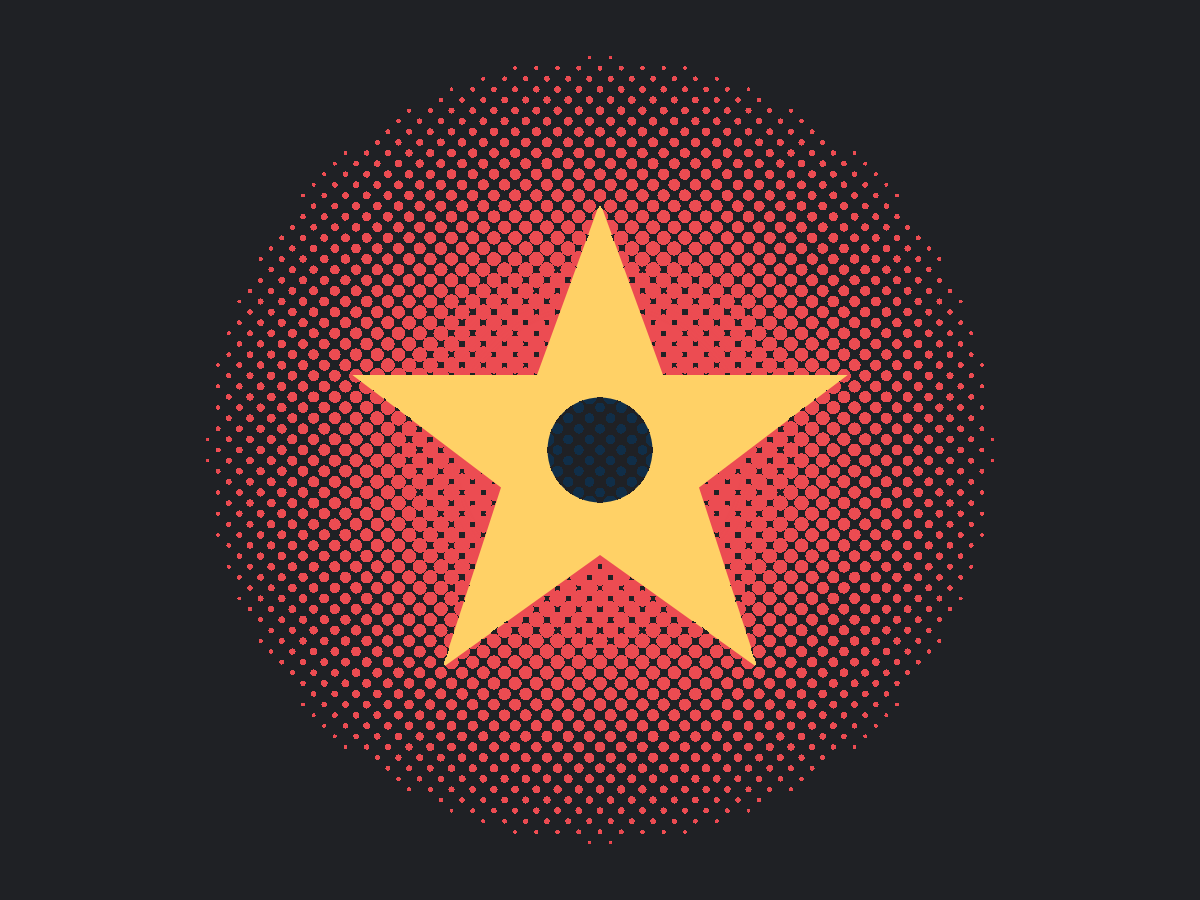

12 px cells, 0.3 mm minimum dots at 300 DPI, knockout off. Dark background simulates garment color; not a print proof.
12 px cells, 0.3 mm minimum dots at 300 DPI, knockout off. Light background simulates garment color; not a print proof.
12 px cells, 0.8 mm minimum dots at 300 DPI, knockout off. Dark background simulates garment color; not a print proof.
When preparing halftone for DTF on a dark garment, first decide whether dark regions belong to the printed image or should reveal the fabric. Black knockout removes black wherever it occurs. That can make a surrounding background disappear, but it can also open holes in eyes, small lettering or outlines. Compare those details with the original. Reducing tolerance can preserve near-black colors, while exact black remains removable.
For artwork on a white garment, white knockout can open the pale background and let the garment provide that area. The same caution applies to white highlights inside the design. The DTF halftone generator cannot know which white region is background and which is essential artwork. If the distinction depends on location rather than color, prepare the selection or mask in an image editor before loading the file here.

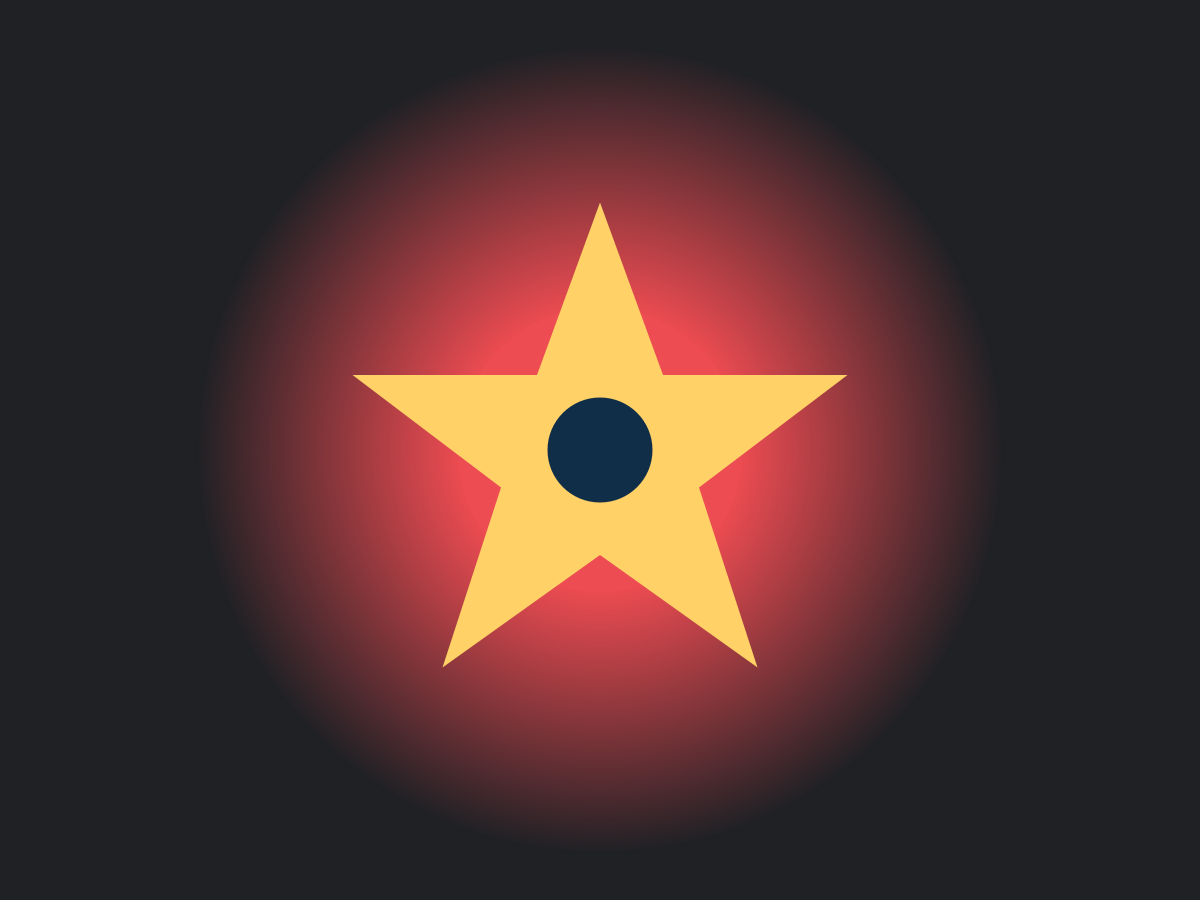

For a transparent glow or shadow, begin with knockout disabled. This makes it easier to see the effect of screening alpha alone. Increase the grid spacing until individual dots are visible, then lower it toward the intended appearance. Compare the faded boundary at the final physical size. A smooth screen preview and a durable small printed mark are different criteria; this tool only controls the digital geometry and transparency.
For repeatable sizing, record the pixel dimensions, DPI, cell spacing and minimum diameter together. A 3000-pixel width at 300 DPI implies 10 inches, or 25.4 cm. The same width at 600 DPI implies 5 inches, or 12.7 cm. If you scale the file inside another application, the physical dots change with it. The DTF halftone generator cannot enforce the size used later by a RIP or printer.
Photoshop can prepare masks, isolate regions and edit source transparency before screening. Illustrator is useful when the original design is already vector artwork and individual shapes need manual changes. This DTF halftone generator handles the narrower step of alpha screening, color knockout and binary-alpha export in the browser. It does not configure a RIP, generate a white-underbase strategy or provide printer calibration.
The most useful handoff is a transparent PNG whose dimensions you have checked. Give the print operator the intended placement size as well as the file. Ask whether the remaining dots meet the requirements of their equipment and materials. The default 0.3 mm threshold is an editable starting value, not a universal production specification. Adhesion and wash durability depend on the entire transfer process and cannot be guaranteed from a digital alpha mask.
The preview is limited to a 1200-pixel long edge and recomputes after an 80 ms pause in parameter changes. Small dots can disappear at that preview scale even when they exist in the final export. Use the full-resolution download to judge them. Processing stays on your device; there is no image upload, account requirement or credit charge for creating the result.
With knockout disabled, fully opaque input pixels retain their RGB values and remain opaque. Only partial alpha becomes a screen. If knockout is enabled, matching opaque colors first receive reduced alpha and can then be screened or removed. Turn knockout off to separate transparency screening from the effect of background-color removal.
DTF PNG export uses only alpha 0 and alpha 255. It does not rely on antialiased canvas edges to create the transparency mask. The retained pixels keep the source RGB values. If you later resize or filter the PNG in another application, that application may introduce intermediate alpha again, so inspect the final handoff file.
No. DPI relates pixels to a physical size, and the tool writes that relationship into PNG metadata. It also uses DPI to convert the minimum dot diameter from millimeters to pixels. Selecting a larger DPI value does not restore missing detail. A 2× export creates more output pixels but is still derived from the same source.
The minimum diameter filter deliberately removes marks below your chosen physical threshold. A high DPI value increases the pixel diameter required to meet that threshold. A low-alpha fade also produces smaller dots. Check all three controls together: cell spacing, minimum diameter and DPI. Use the exported file, not only the reduced preview, to inspect the result.
JPG cannot store alpha, so the tool fills transparent areas white before saving it at quality 0.92. This makes JPG suitable for an opaque proof, but not for carrying the transparent mask. Choose PNG for binary transparency and DPI metadata. SVG is available when you specifically need vector paths, though detailed source colors can make it large.
The tool makes no durability guarantee. It controls the digital alpha mask, retained colors, dot geometry and DPI metadata. Adhesive, powder, film, curing, transfer settings, fabric and the printer’s workflow remain outside its scope. Confirm the smallest usable feature with your print provider and evaluate a physical sample before committing a production run.
Try the DTF halftone generator on the transparent-star sample first. Switch knockout off to inspect alpha screening, then test a color removal separately. Once you understand which regions change, load your artwork, choose its intended physical size and export a PNG. Keep the original and confirm the downloaded mask before passing the design to a printer.
